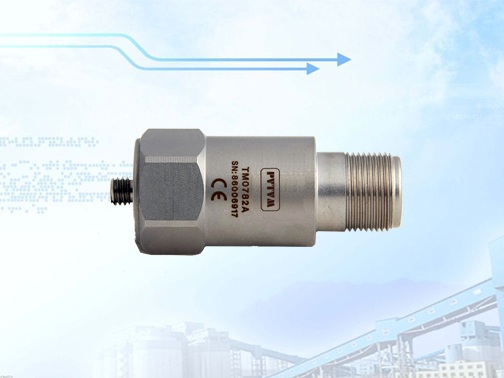

TM0782A Accelerometer

Download

General Purpose, Industrial Piezoelectric Accelerometers

The TM0782A-K accelerometer kit consists of one accelerometer and one 5 meter cable. This accelerometer kit directly interfaces with PVTVM’s signal conditioners: DTM, TR transmitters, DM Dual Monitors and PT580 vibration switches to measure case vibration in acceleration or velocity.





Product Detail:

Specifications





Electrical

Sensitivity:                    100mV/g, @ 25oC, ±10%

Frequency Response:          0.5 - 10,000Hz (±3dB)

Acceleration Range:            50g

Isolation:                      Fully isolated

Electrical Noise:               0.0007g

Power Requirement:           2 - 10mA constant current

18 - 30VDC

Bias Voltage:                  10 - 14VDC

Resonance Frequency:               30 kHz

Maximum Transmission Distance:

300 meters (1,000 feet)





Environmental and Physical

Temperature Range:             -50oC to +120oC

Environmental Protection:         IP67

Weight:                         90 grams

Case Material:                   Stainless Steel

Mounting:                       1/4-28UNF tapped hole

Installation Torque:               29N x M

Connection

A: Power (red)

B: COM (white)

Shield
