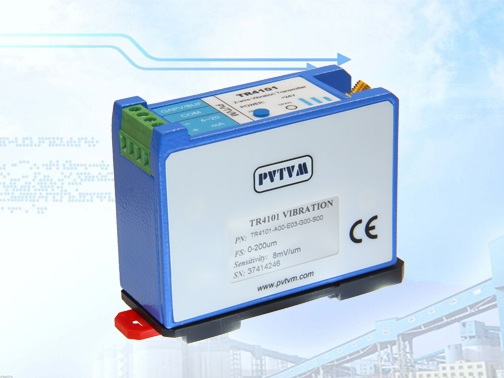

TR4101 Proximity Loop Powered Transmitter for Radial Shaft Vibration

Download








2-wire loop powered transmitter for Radial Shaft Vibration

 Does not require proximity probe driver

4-20mA output

 Buffered output/ GAP

 Compatible with other manufacturers’ proximity probes (5mm, 8mm and 11mm)

Powered by DCS/PLC directly





Product Detail:

The TR4101 is a cost-effective solution for monitoring the radial vibration on the shaft of balance of plant machines. The TR4101 combines the proximity probe driver and the signal conditioning circuit into one package. It works with a proximity probe and extension cable as a system.

Electrical

Power Supply:

16-30VDC

Frequency Response (±3dB):

2.0 - 3,000Hz

Probe and Cable:

5 meter or 9 meter proximity probe and extension cable

works with 5mm, 8mm, and 11mm probes

Proximity probe includes: TM0180, TM0105, TM0110, 3300, 7200 and 990 series

Sensor Linear Range (reference with AISI 4140 steel):

5mm, 8mm probe: 2.0 mm (80mil)

Approximately 0.25mm (10mil) to 2.25mm (90mil)

11mm probe: 4.0mm (160mil)

Approximately 0.4mm (15mil) to 4.4mm (175mil)

Overall Vibration:

4-20mA

2-wire, load

Buffered Output/ GAP:

Original vibration, un-filtered

Nominal: 2-18VDC

Impedance: 20 kΩ

Maximum cable distance: 3.0m (10ft)

Sensitivity: 8.0mV/um (200mV/mil) nominal

Maximum Load:

50×(Vs-16)

Where Vs is the system power supply

Isolation:

> 500Vrms; circuit to case

System OK:

System OK: output 4-20mA

System Not OK: output < 3.6mA

Physical

Height: 75mm (2.95”)

Weight: 0.5 kg (1.0 lb)

Environmental

Temperature:

Operation: -40℃ to +70℃

Storage: -40℃ to +100℃

Humidity:

90% non-condensing
