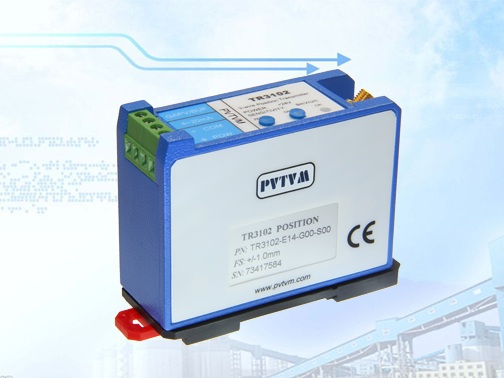

TR3102 Proximity 3-Wire Transmitter for Axial Position/ Phase Reference

Download

 3-Wire Transmitter for Axial Position/ Phase Reference

Does not require proximity probe driver

4-20mA output, source, will transmit signal up to 300 meter(1000ft)

 Buffered output/ GAP

 Compatible with other manufacturers’ proximity probes (5mm, 8mm and 11mm)

Powered Supply:  20-30VDC

The TR3102 is a cost-effective solution for monitoring the axial position or phase reference on balance of plant machines. The TR3102 combines the proximity probe driver and the signal conditioning circuit into one package. It works with the proximity probe and extension cable as a system.





Features





  • Does not require proximity probe driver
  • Buffered output/GAP will transmit 300 meters (1,000 feet)
  • Compatible with other manufacturers’  proximity probes (5mm, 8mm and 11mm)
  • Aluminum cast case (copper free) with epoxy potting for better environmental protection and reliability
  • Same size as a proximity probe driver





Specifications





Electrical

DCS or PLC Power Supply:

20-30VDC

Sensor Interface:

Connection:

Special 95Ω coaxial cable with connector

Probe:

5 meter or 9 meter proximity probe and extension cable

works with 5mm, 8mm, and 11mm probes

Proximity probe includes: TM0180, TM0105, TM0110, 3300, 7200, 990 series.

Sensor Linear Range (reference with AISI 4140 steel):

5mm, 8mm probe: 2.0 mm (80mil)

Approximately 0.25mm (10mil) to 2.25mm (90mil)

11mm probe: 4.0mm (160mil)

Approximately 0.4mm (15mil) to 4.4mm (175mil)

4-20mA Transmission:

2-wire, source

Buffered Output (GAP V):

Raw position signal

Nominal 2-18VDC

Impedance: 1,000Ω

Maximum cable distance: 300m (1,000ft)

Sensitivity: 8.0mV/um (200mV/mil) nominal

Frequency response: 0 - 10 KHz

Maximum Load:

500Ω

System Self-test:

System OK: output 4-20mA

System Not OK: output < 3.0mA

Physical

Height: 75mm (2.95”)

Weight: 1.0kg (2.0 lbs)

Environmental

Temperature:

Operation: -40℃ to +70℃

Storage: -40℃ to +100℃

Humidity:

90% non-condensing
